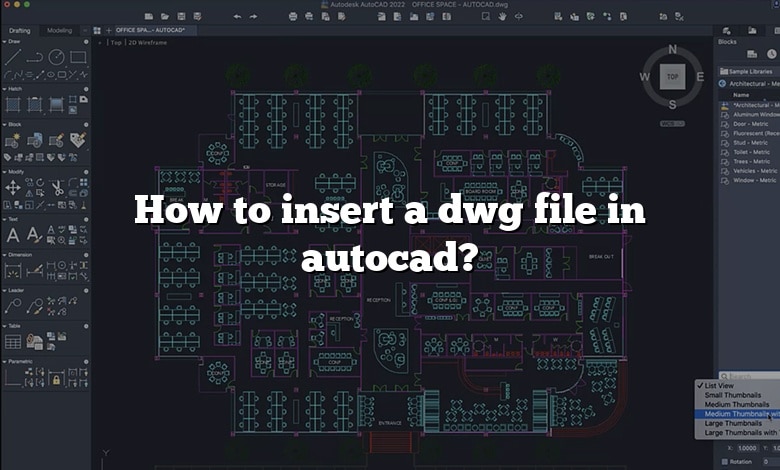

How to insert a dwg file in autocad?

After several searches on the internet on a question like How to insert a dwg file in autocad?, I could see the lack of information on CAD software and especially of answers on how to use for example AutoCAD. Our site CAD-Elearning.com was created to satisfy your curiosity and give good answers thanks to its various AutoCAD tutorials and offered free.
Engineers in the fields of technical drawing use AutoCAD software to create a coherent design. All engineers must be able to meet changing design requirements with the suite of tools.
This CAD software is constantly modifying its solutions to include new features and enhancements for better performance, more efficient processes.
And here is the answer to your How to insert a dwg file in autocad? question, read on.

Introduction

1. Manage tab Insert panel Import. Optionally, 3D Model tab Create panel Import.
2. In the applicable dialog box, set the Files of type to view the available files.
3. Select the file to import and click open.

Best answer for this question, how do I import AutoCAD files into AutoCAD? Press Ctrl+Shift+C or enter COPYBASE at the command prompt or . Select the base point. Select the objects to copy and press Enter. The objects are now available to be pasted into the same drawing or another drawing.

As many you asked, how do I insert a DWG file? Generally, here’s how you import: Click Insert > CAD Drawing. Then select the AutoCAD file, specify the scale and layer options, and the drawing will appear on the page.

In this regard, how do I import a DWG file into AutoCAD 2021?

1. File New Import CAD Formats.
2. Get Started tab Launch panel Import CAD Formats.
3. Get Started tab Launch panel Open.

Also know, why is my DWG file not opening in AutoCAD? Causes: The AutoCAD version used to open the DWG file is older than the file version. The DWG file is damaged or corrupted. The file is stored in a cloud or server location that is not syncing properly.Click the block(s) you want to copy. You can also draw a window encompassing several objects. When finished copying, press Enter. To paste the blocks, press CTRL + V (Windows keyboard) or Command + V (Mac keyboard).

How do I convert DWG to DXF in AutoCAD?

1. Click Application menu Save As Other Formats. Find.
2. Click File menu Save As.
3. In the Save Drawing As dialog box, in the Files of type box, select a DXF format.
4. Select a folder and enter a file name.
5. Click Save.

How do I open a DWG file in layout?

Select File > Insert. Navigate to the CAD file you want to import, select the file, and click Open. The DWG/DXF Import Options dialog box appears. Select the Model Space (Only) option.

How do I import drawing from model to layout in AutoCAD?

Simply click on the tag that says “Layout 1” next to the Model tag on your Autocad document (see right) You will leave your working “Model” space and move to the “Layout” space (see below). You’ll notice a box on the sheet of paper that may show some of your work or a grid in it if the grid is still on.

What is DWG import?

This feature is predominantly intended for pasting a building floor projection to a drawing and sketching electro-installation. The drawing imported from AutoCAD gets converted to an image. It is not possible to edit the individual objects (lines, blocks etc.).

How do I import a block library in AutoCAD?

1. Open a dwg file or start a new file using a dwg template.
2. On the ribbon, click Annotate tab Symbols panel Import AutoCAD Block .
3. In the Import Block dialog box, browse to and select the dwg file that contains the block definition.
4. In the Block area, select the block to insert.

Where is AutoCAD block library?

Block libraries are available in the Library tab of the Block palette.

How do I open an existing drawing in AutoCAD?

On the ribbon toolbar, click the Open tool. On the menu, choose File > Open. On the Standard toolbar, click the Open tool. Type open and then press Enter.

How do I restore a DWG file in AutoCAD?

1. Open the Autosave folder. On Windows: By default, it is in the Temp folder. You may open it by typing %tmp% into the Start menu.
2. Look for a file with the same name of the one to recover, a time stamp code, and an SV$ extension.
3. Change the SV$ extension to DWG.
4. Open the file in AutoCAD.

How do I open a non valid file in AutoCAD?

1. Use “Recover” on AutoCAD. Open AutoCAD and go to “File” Select the option “Drawing Utilities” Choose “Recover”
2. Find and delete DWL files. Open the folder where AutoCAD places saved files. Check the option “Hidden Files”

How do I copy a layout from one AutoCAD file to another?

1. Open the drawing that you want to import a layout into.
2. Right click on a layout tab.
3. Select “From Template”.
4. Change the Files of type to “Drawing (*.
5. Browse to the drawing that you want to import the layout tab from.
6. Select the Layout(s) from the Insert Layout(s) dialog.
7. Select OK.

How do you copy and paste an xref in AutoCAD?

Type NCOPY on the command line and press enter to start the command. Now click on the object which you want to copy from block or X-Ref and press enter. Then specify a base point to pick the copied object and click at destination point to paste the selected object.

How do I insert a DWG file into Word?

In AutoCAD, select the objects that you want to insert into a Word document. Press Ctrl+C. In Word, click Home tab > Clipboard panel > Paste drop-down list > Paste Special. In the Paste Special dialog box, click AutoCAD Drawing Object and click OK.

What is the difference between DWG and DXF?

DWG files are more compact than DXF files and can also store a greater variety of files. DWG files use binary code — that is, a computer processing language made of zeroes and ones. DXF files use text-based coding (ASCII). Binary code is more compact, so DWG files tend to be about 25% smaller than DXF.

What is the full form of DXF?

DXF is short for Drawing Exchange Format or Drawing Interchange Format and is a type of vector file. Many engineers, designers, and architects use the DXF file format for 2D and 3D drawings during product design.

How can I change DWG version?

1. Add the file(s) in the Files Tree list (click the green plus Add Files button).
2. Choose the appropriate file format version.
3. Click Convert.

Wrap Up:

Everything you needed to know about How to insert a dwg file in autocad? should now be clear, in my opinion. Please take the time to browse our CAD-Elearning.com site if you have any additional questions about AutoCAD software. Several AutoCAD tutorials questions can be found there. Please let me know in the comments section below or via the contact page if anything else.
