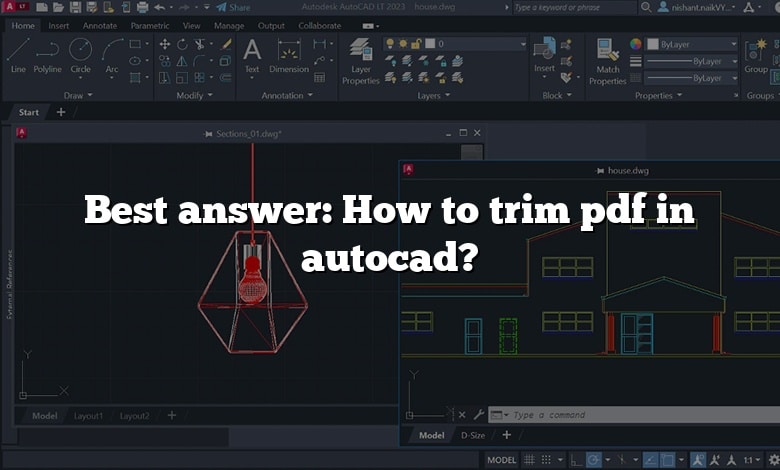

Best answer: How to trim pdf in autocad?

After several searches on the internet on a question like Best answer: How to trim pdf in autocad?, I could see the lack of information on CAD software and especially of answers on how to use for example AutoCAD. Our site CAD-Elearning.com was created to satisfy your curiosity and give good answers thanks to its various AutoCAD tutorials and offered free.
Engineers in the fields of technical drawing use AutoCAD software to create a coherent design. All engineers must be able to meet changing design requirements with the suite of tools.
This CAD software is constantly modifying its solutions to include new features and enhancements for better performance, more efficient processes.
And here is the answer to your Best answer: How to trim pdf in autocad? question, read on.

Introduction

Select a PDF underlay. Right-click in the drawing area and click Clip PDF.
At the command prompt, Enter s (Select Polyline), p (Polygonal), r (Rectangular), or i (Invert Clip) and then, draw the specified boundary on the underlay.

In this regard, can you edit a PDF in AutoCAD? AutoCAD does not edit PDF files.

Likewise, how do I trim a file in AutoCAD?

At the Command prompt, enter IMAGECLIP.
Select the image to clip by selecting the image boundary.
At the Command prompt, Enter n (New Boundary).
If prompted, enter n (No) or y (Yes) to delete the old boundary.
Enter p (Polygonal) or r (Rectangular), and then draw the boundary on the image.

Similarly, how do I edit a PDF underlay in AutoCAD?

Click Modifymenu Object Image Adjust.
Select the PDF underlay to adjust.
On the Enter PDF Underlay Options menu, select one of the following: Select Fade and enter a fade value. Select Contrast and enter a contrast value. Select Monochrome and set monochrome to Yes or No.

Subsequently, how do I remove boundary from PDF in AutoCAD?

Open a file in Acrobat DC.
Click on the “Edit PDF” tool in the right pane.
Use Acrobat editing tools: Add new text, edit text, or update fonts using selections from the Format list.
Save your edited PDF: Name your file and click the “Save” button.

Can I import a PDF into AutoCAD?

AutoCAD supports creating PDF files as a publishing output for AutoCAD drawings, and importing PDF data into AutoCAD using either of two options: PDF files can be attached to drawings as underlays, which can be used as a reference when collaborating on projects.

What is PDF underlay in AutoCAD?

Attaching a PDF File as an Underlay. Many people distribute PDF files as a way of sharing information without having to distribute the actual DWG file. You can also attach a PDF file to your drawing as an underlay. This provides a secure way for people to access, view, and snap to data without being able to edit it.

How do I edit a PDF in AutoCAD 2017?

What is an underlay in AutoCAD?

Underlays are similar to attached raster images in that they provide visual content but also support object snapping and clipping. Unlike external references, underlays cannot be bound to the drawing.

How do you remove borders from PDF?

Launch Adobe Acrobat and open the PDF.
Click “Document” near the top of the Adobe Acrobat window and select “Crop Pages” from the menu to open the Crop Pages window.
Place a check mark in front of the “Remove White Margins” option in the Margin Controls section to enable it.

How do I trim a view in AutoCAD?

What is clipping boundary in AutoCAD?

The clipping boundary determines a portion of an image, underlay, viewport, or external reference to hide. The visibility of the clipping boundary is controlled by the FRAME system variable. The list of prompts varies depending on whether you are clipping an underlay, image, external reference, or viewport.

How do you crop a PDF?

Open the PDF in Acrobat.
Select the “Edit PDF” tool:
In the secondary toolbar, click “Crop Pages.”
Drag a rectangle on the page you want to crop.
Double-click inside the cropping rectangle.
Apply these settings to additional pages, set the page range, or click “All” under Page Range.

How do I convert a PDF to DWG?

Open our free PDF to DWG converter in your mobile device’s browser.
Upload the PDF document for conversion.
Download the converted DWG file once the conversion is complete.

How do I convert a PDF to DWG in AutoCAD 2019?

Step 1: Import PDF to AutoCAD. Open AutoCAD and create a new DWG file.
Step 2: Specify Importation Options.
Step 3: Save File.

How do I convert a PDF to DWG in AutoCAD 2018?

How do I convert a PDF to DXF in AutoCAD?

Open your PDF file (scanned or native) in Able2Extract Professional. In the side panel, go to the AutoCAD section and in the Format option, select Drawing Exchange Format (DXF) from the dropdown menu. Select the content you want to convert. Click on the AutoCAD button in the Convert toolbar.

How do I create a PDF underlay?

Click Insert > PDF Underlay (or type AttachPDF). In the dialog box, select a PDF file to attach and click Open. In the Attach Reference: PDF Underlay dialog box, Name displays the name of the file you selected, or you can select a previously attached PDF file. Click Browse to select a different PDF file.

How do I add a PDF underlay?

Use one of the following methods: On the ribbon, choose Insert > PDF Underlay (in Data).
Choose the .
Click Open.
Specify which page of the .
Select an insertion point.
Enter the scale in which to insert the .
Enter the rotation to use for the insertion.

How do I convert a PDF to DWG in AutoCAD 2015?

Wrap Up:
