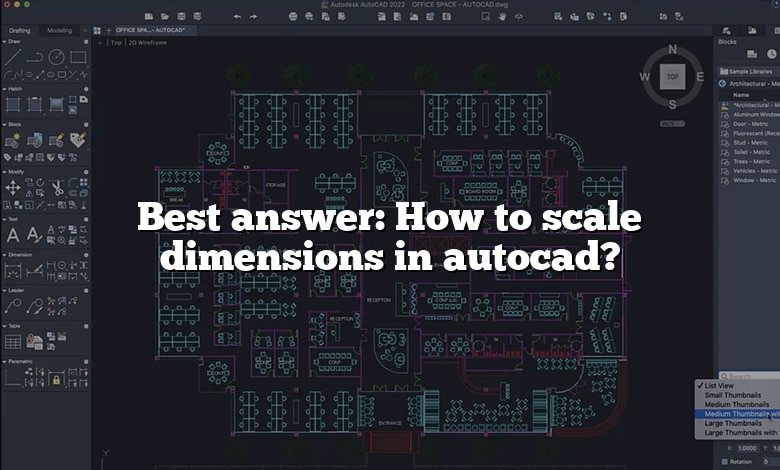

Best answer: How to scale dimensions in autocad? , this article will give you all the information you need for this question. Learning AutoCAD may seem more complicated than expected, but with our multiple free AutoCAD tutorialss, learning will be much easier. Our CAD-Elearning.com site has several articles on the different questions you may have about this software.
AutoCAD can be considered as one of the most popular CAD programs. Therefore, companies and industries use it almost everywhere. Therefore, the skills of this CAD software are very advantageous and in demand due to the highly competitive nature of the design, engineering and architectural markets.
And here is the answer to your Best answer: How to scale dimensions in autocad? question, read on.
Introduction
How to scale up in AutoCAD – Window select the object(s), type SCALE, and then specify a number larger than 1. Hit Enter. The size of the object(s) will SCALE UP by that scale factor.
Considering this, how do I fix dimension scale in AutoCAD? Go to Dimension Style Manager by typing DIMSTYLE in the command line, or clicking on the dimension style icon. Select the dimension style you will be using, and click Modify. In the Fit tab, set the Dimension Scale to 1.
Additionally, how do you dimension a scale?
Similarly, how do you scale dimensions in AutoCAD layout? In the Dimension Style Manager, select the style you want to change. Click Modify. In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features, select Scale Dimension to Layout (Paper space). Click OK.
Quick Answer, how do you calibrate dimensions in AutoCAD?
- Click Home tab Annotation panel Dimension Style.
- In the Dimension Style Manager, select the style you want to change.
- In Modify Dimension Style dialog box, Fit tab, under Scale for Dimension Features, enter a value for the overall scale.
- Click OK.
Check the units of the drawing are set correctly (enter the UNITS command). The units may have been changed from when the drawing was originally created. Check objects for Elevation or Start Z / End Z values (via Properties palette). Dimensioning from 2D to 3D space can throw off values.
How do I match scale in AutoCAD?
- Click Home tab Modify panel Scale. Find.
- Select the object to scale.
- Select the base point.
- Enter r (Reference).
- Select the first and second reference points, or enter a value for the reference length.
What does a scale of 1 50 mean?
1:50 is a ratio. it means you’re scaling 1 unit to 50 units. that could be inches (1″=50″) or miles (1 mile=50 miles) or anything else, but it’s a direct scale. that works better in metric, because their units scale in multiples of 10.
How do you scale a drawing?
How do you change the scale factor in AutoCAD?
- Click Home tab Modify panel Scale. Find.
- Select the object to scale.
- Specify the base point.
- Enter the scale factor or drag and click to specify a new scale.
What does the scale 1/100 convert to?
A scale of 1 to 100 is indicated on a drawing using the code 1:100. This can be interpreted as follows: 1 centimetre (0.01 metre) measured with a ruler on the plan would need to be multiplied by 100 to give the actual size of 1 metre.
How do I manually change dimensions in AutoCAD?
In the Dimension Style Manager, select the style you want to change. Click Modify. In the Modify Dimension Style dialog box, Fit tab, under Fine Tuning, select Place Text Manually When Dimensioning.
Why are my dimensions so big in AutoCAD?
Text objects in an AutoCAD drawing are blown up or scaled much larger than expected when displayed in a layout, in a viewport, or in paper space. The same objects might show the correct size and height in model space. Also: The Standard Scale of the Viewport may revert to “Scale to fit” value.
How do you calculate scale factor?
The basic formula that is used for calculating the scale factor is, Scale factor = Dimension of the new shape ÷ Dimension of the original shape. In case, if the original figure is scaled up, the formula is written as, Scale factor = Larger figure dimensions ÷ Smaller figure dimensions.
How do you calculate a scale ratio?
To find the scale factor, locate two corresponding sides, one on each figure. Write the ratio of one length to the other to find the scale factor from one figure to the other. In this example, the scale factor from the blue figure to the red figure is 1.6 : 3.2, or 1 : 2.
How do you convert to scale 1 50?
You could also say, 1 unit in the drawing is equal to 100 units in real life. So, if we were drawing a table that measured 100cm wide by 200cm long at a scale of 1:50, you would draw the table 2cm wide by 4cm long on your piece of paper. This is worked out by dividing the real life size (100cm) by 50 (1:50 scale).
What is the use of scale command in AutoCAD?
Using scale command you can change the size of an object in AutoCAD. To explain scale command I will use this simple window block which has the size of 10 unit along the X-axis and 15 units along Y-axis. Select the scale tool from Modify panel of the home tab or use its command SC.
How do you use a 1/20 scale?
How do you calculate scale in engineering drawing?
How do you make a 1/20 scale in AutoCAD?
How to scale down in AutoCAD – Window select the object(s) in AutoCAD, type SCALE, and then specify a number between 0 and 1. Hit Enter. The size of the object(s) will SCALE DOWN by that factor.
What is a scale of 1 to 200?
The 1:200 scale is a modeling scale used in the model building hobby. A vehicle or building made in the 1:200 scale, fits 200 times inside its real-life counterpart (in one dimension; it would fit 8 million times if packed three-dimensionally, and would weigh 8 million times less).
Final Words:
I believe I covered everything there is to know about Best answer: How to scale dimensions in autocad? in this article. Please take the time to examine our CAD-Elearning.com site if you have any additional queries about AutoCAD software. You will find various AutoCAD tutorials. If not, please let me know in the remarks section below or via the contact page.
The article clarifies the following points:
- How do I match scale in AutoCAD?
- What does a scale of 1 50 mean?
- How do you change the scale factor in AutoCAD?
- Why are my dimensions so big in AutoCAD?
- How do you calculate scale factor?
- What is the use of scale command in AutoCAD?
- How do you use a 1/20 scale?
- How do you calculate scale in engineering drawing?
- How do you make a 1/20 scale in AutoCAD?
- What is a scale of 1 to 200?
